UNI-T UTD2102CEX+ 100MHz 2CH Digital Storage Oscilloscope ( DSO )
UNI-T UTD2102CEX+ 100MHz 2CH Digital Storage Oscilloscope ( DSO ) buy from www.mobiletoolshop.com
Rs.21,498.00 Rs.22,500.00
UNI-T UTD2102CEX+ 100MHz 2CH Digital Storage Oscilloscope ( DSO )
The CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals.
- Dual Channel, 100 Mhz
- Real Time Sample Rate: 1GSa/s
- Display range 8div x16 div and has a new Autoset strategy ,which can easily cope with complex test scenarios
- HD color LCD screen display
- Multi-language optional ,With 9 languages, it can meet the needs of users in more countries
- Multi-frequency square wave optional,ouput standard square wave 10Hz, 100Hz, 1kHz,10kHz optional
- Various parameter measurement and waveform recording functions
Specifications UTD2102CEX+
- Channels 2
- Bandwidth 100MHz
- Sample Rate 1GS/s
- Rise Time ≤3.5ns
- Memory Depth 64kpts
- Waveform Acquisition Rate ≥5000wfms/s
- Vertical Sensitivity (V/div) 1mV/div~20V/div
- Timebase Range (s/div) 2ns/div~50s/div
- Storage Setup, Wave, Bitmap
- Trigger Modes Edge, Pluse, Alternate, VideoInterface USB OTG

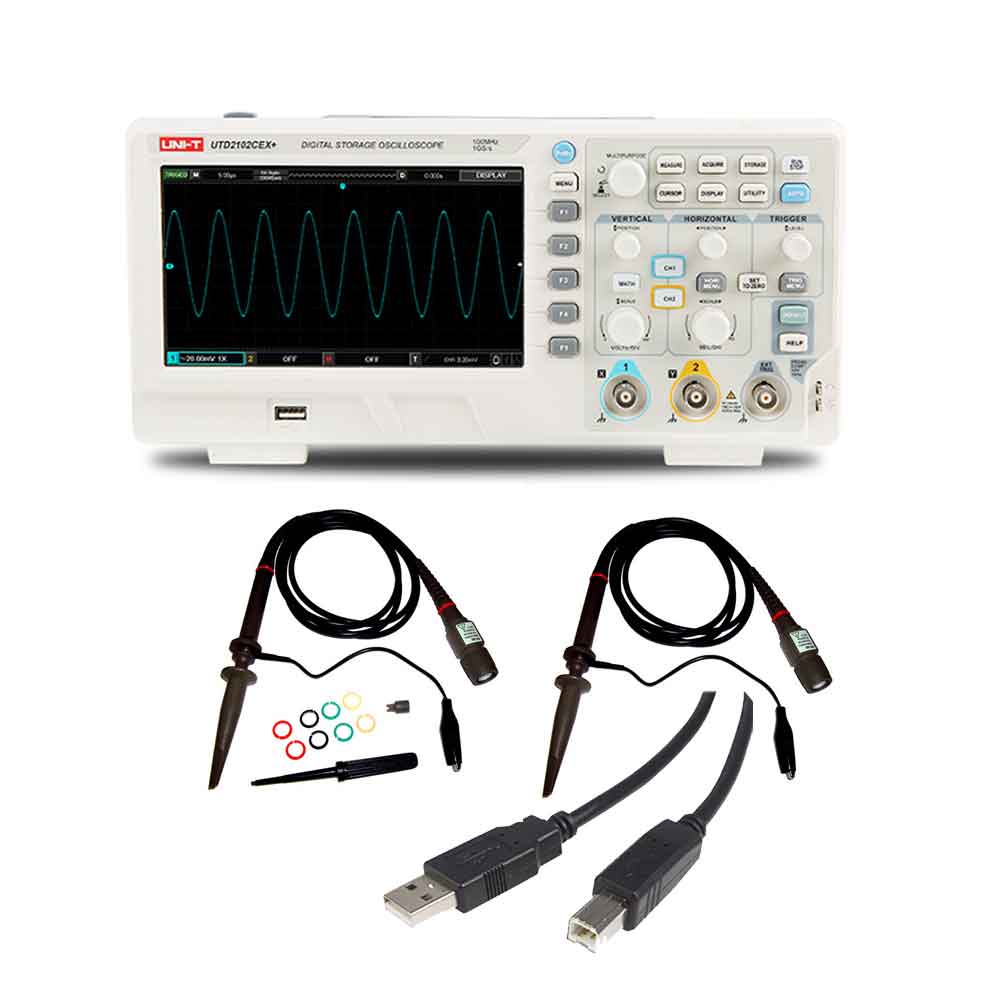

Package Content*
1x UNI-T UTD2102CEX+ 100MHz 2CH Digital Storage Oscilloscope ( DSO )
2x Probs Cable ( UT-P04 ) 100MHz/6MHz , 10X:600V PK , 1X:200V PK
1x USB A+B Cable
| Weight | 2.0 kg |
|---|---|
| Dimensions | 25 × 20 × 15 cm |
